Failures analysis allows you to identify and classify the main occurrences that impact asset management. Using a Pareto diagram, this feature presents failures in both numerical and percentage formats, helping to efficiently prioritize corrective and preventive actions.
Accessing Failure Analysis
To view this information, follow the steps below:

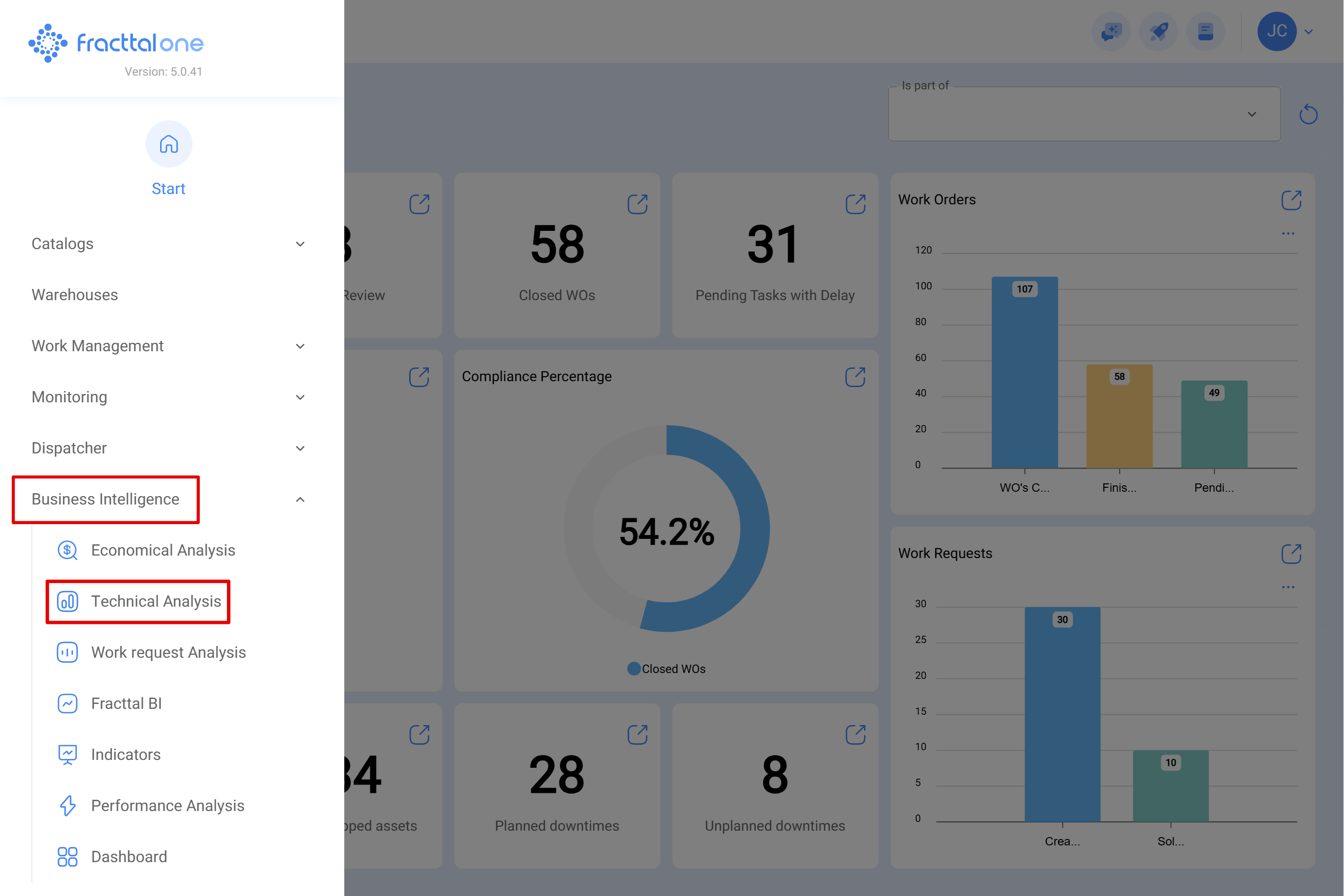

- In the main menu, go to Business Intelligence.
- Select the option Technical Analysis.
- Within this module, scroll down until you find the Failures Analysis section.

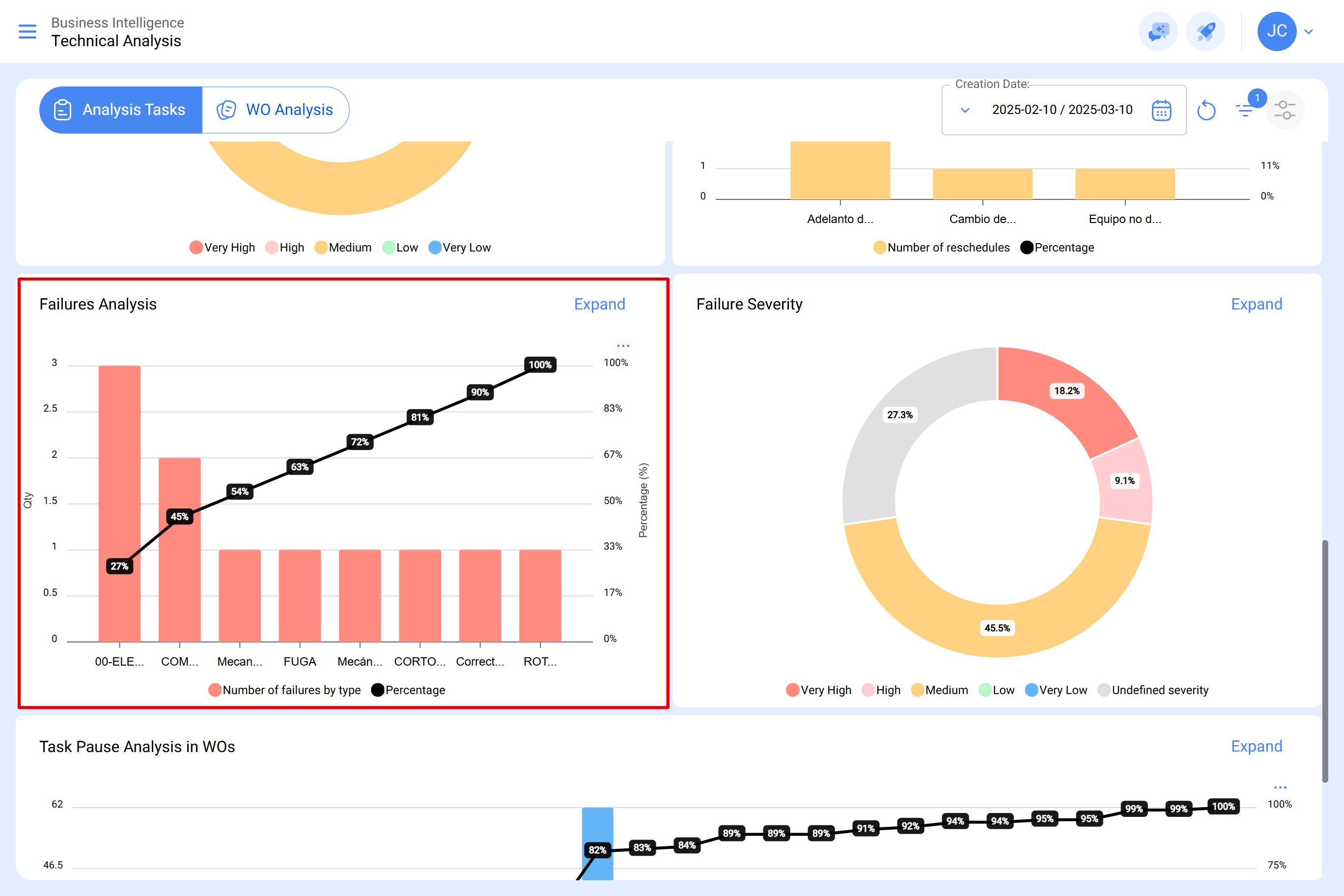

The Pareto diagram will be highlighted, displaying the most frequent types of failures and their representativeness within the system.
Exploring the Analysis Details

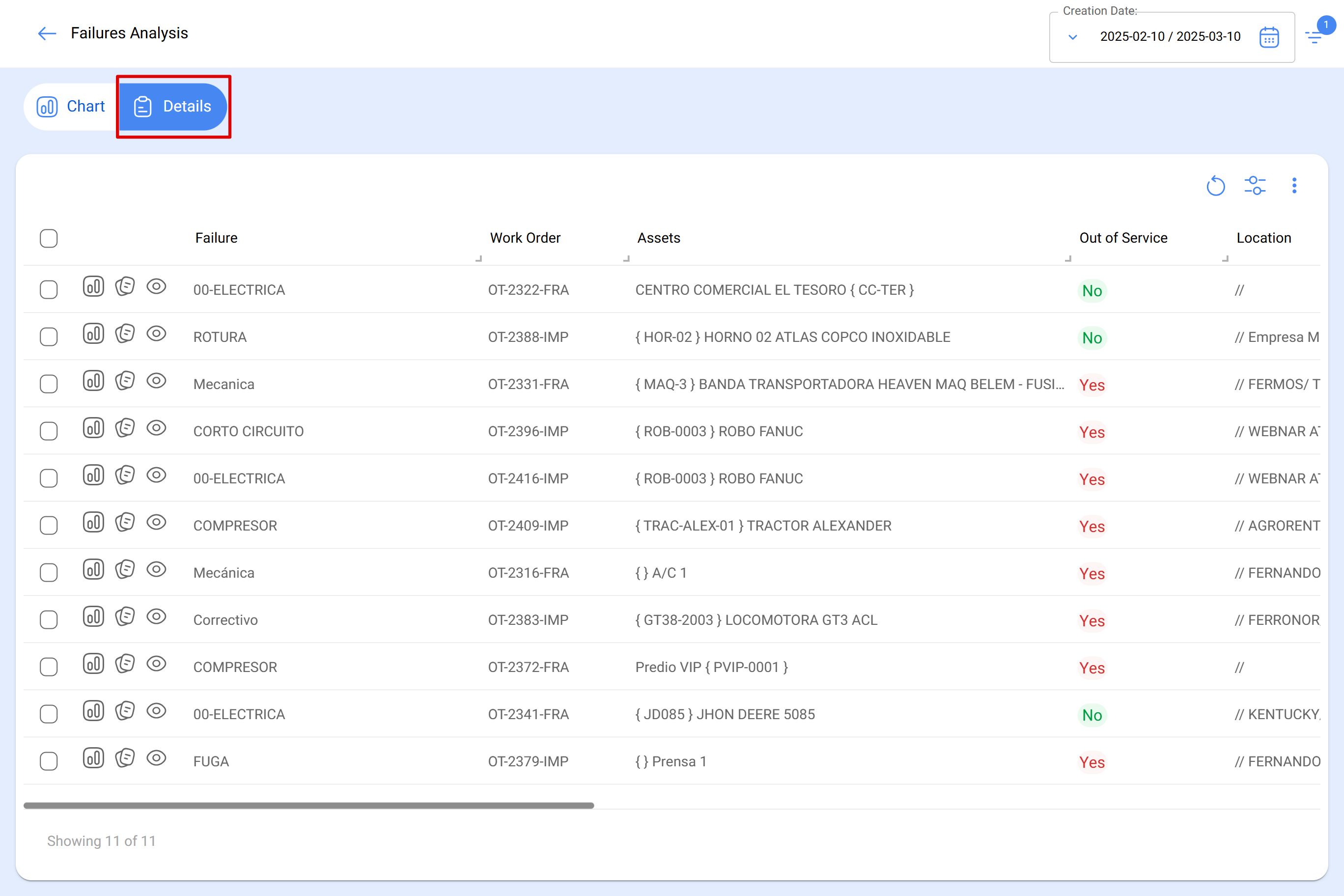

To obtain more details about the recorded failures, click on the "Expand" option. This section provides two different views:
- Chart: Displays an expanded diagram, detailing the number of failures by type and their percentage of occurrence.
- Details: Presents specific information about each failure, including the Work Order (WO), Asset, Cause of Failure, and other relevant data.
All these charts can be examined in detail by clicking on the "Details" icon available in the complete list view. The system will display a table with a detailed description of the data presented in the charts, allowing for an in-depth analysis of occurrences.

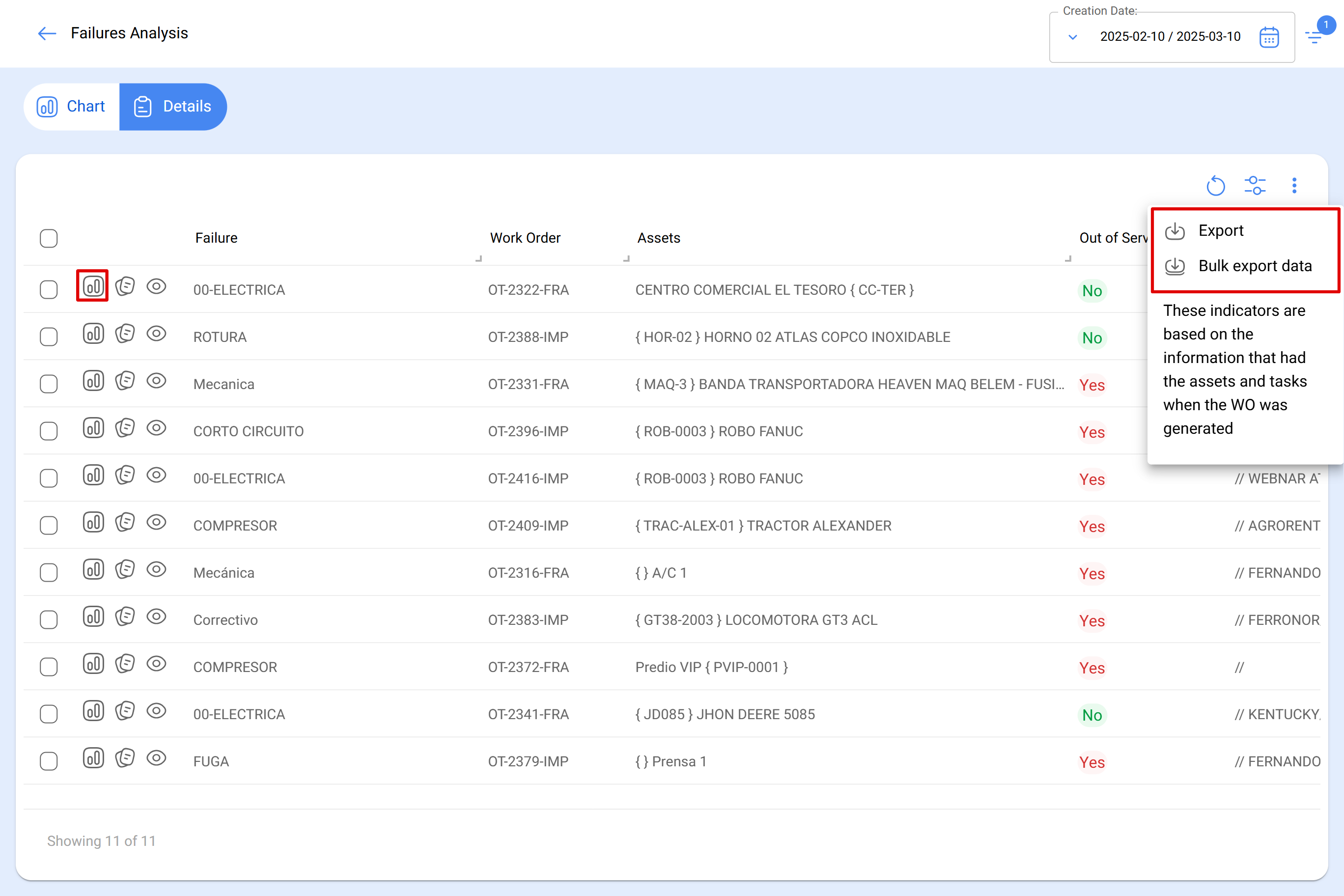

The module’s information can be exported using the additional options menu, which accompanies each chart and table.
