In Fracttal, you can create public QR codes that allow any user, without the need for registration, to view the maintenance history of equipment (last 50 preventive tasks).

Being public, the code can be scanned from any device or application, without requiring a Fracttal account.

Process to configure public QR codes

To generate a public QR code, you just need to go to the general record of the asset you want to configure and then specifically to the field called “Public QR”.

$app.fracttal.com_inventories_equipments (11)1.PNG$

Once there, you must click on the options button that you will find in that field, where two options will be displayed:

Generate: Option that allows generating a unique URL composed of “https://one.fracttal.com/qr/” followed by a standard UUID identification code.
Open: Option that allows opening the public URL associated with the asset’s guest portal.

$app.fracttal.com_inventories_equipments (11)2.PNG$

Once the options are displayed, just click on “Generate” so the system automatically creates the URL for the public QR code.

$app.fracttal.com_inventories_equipments (13)3.PNG$

$app.fracttal.com_inventories_equipments (11)4.PNG$

Then, click the "Save" button to keep all the changes made to the QR configuration.

$app.fracttal.com_inventories_equipments (14)4.PNG$

Finally, if you want to view the guest portal associated with the asset in question, just click “Open” to open a new window with that public request portal.

$app.fracttal.com_inventories_equipments (15)5.PNG$

Note:

To generate the QR code image, you should use a QR code generator preferably using the created URL, then it should be printed to be installed on the desired asset.
All requests sent through this portal will have a status that allows differentiating which requests come from this functionality, so they can be deleted if requests that do not make sense for the service provided are generated.

$app.fracttal.com_inventories_equipments (11)4.PNG$

We can also associate the guest URL with the asset’s internal QR code from the mobile application. To do this, go to the “Barcode” field and click on the QR code reading option. Once clicked, the reader will open, scan the QR code, and the URL will be automatically registered. Finish by clicking SAVE.

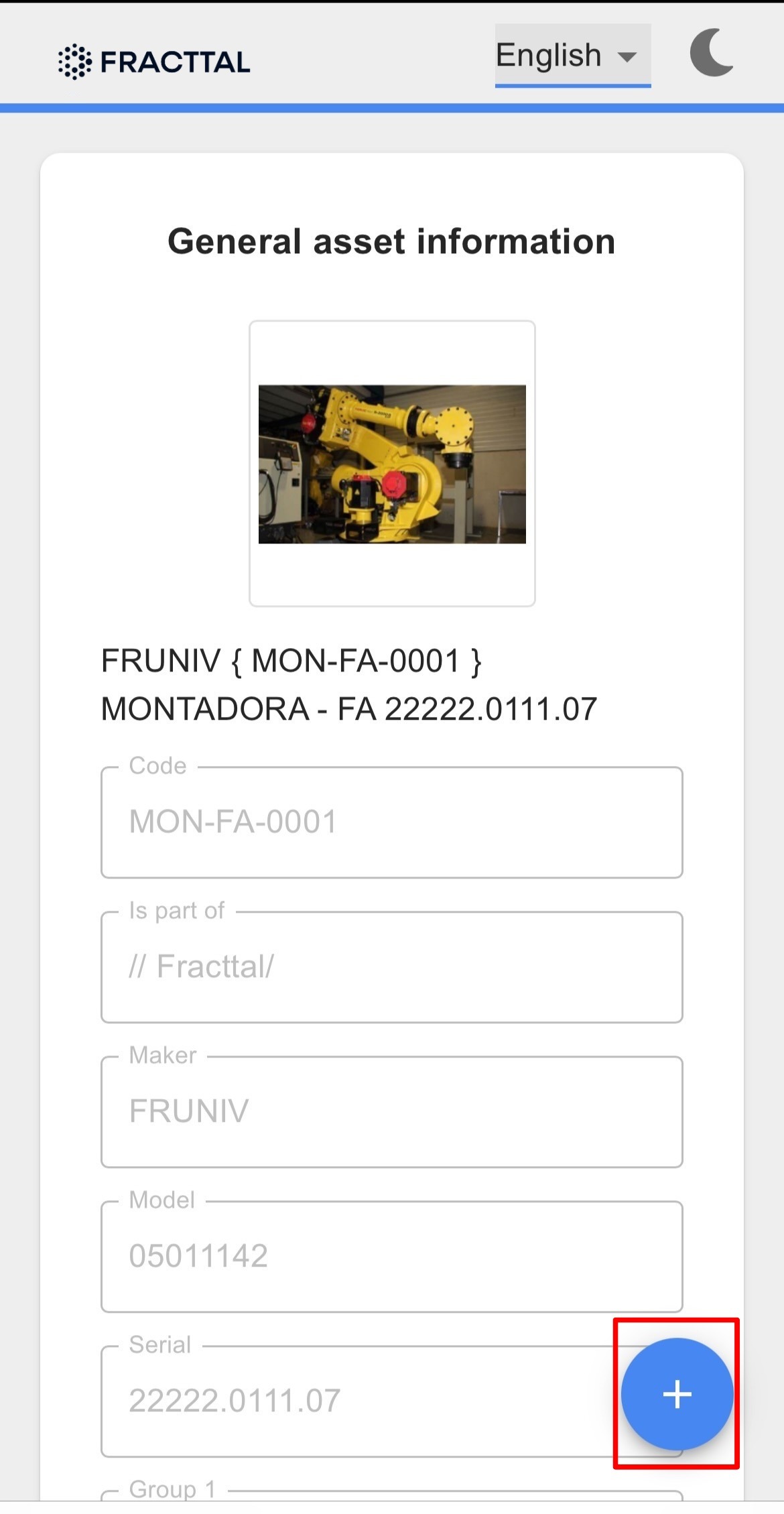

Upon detecting the QR code scan, the portal will open where you will be able to see at the bottom each of the planned tasks that have been executed for this asset. Likewise, work requests can be made for the asset in question.
