The count of out-of-range values feature allows users to visualize and quantify how many times a measured variable has exceeded the defined limits directly within the Fracttal BI Meter Dashboard.
This function offers a summarized and configurable presentation of each meter's behavior, allowing differentiation between events where values are below the minimum or above the established maximum.
Access and Configuration of the Metric in the Meter Dashboard

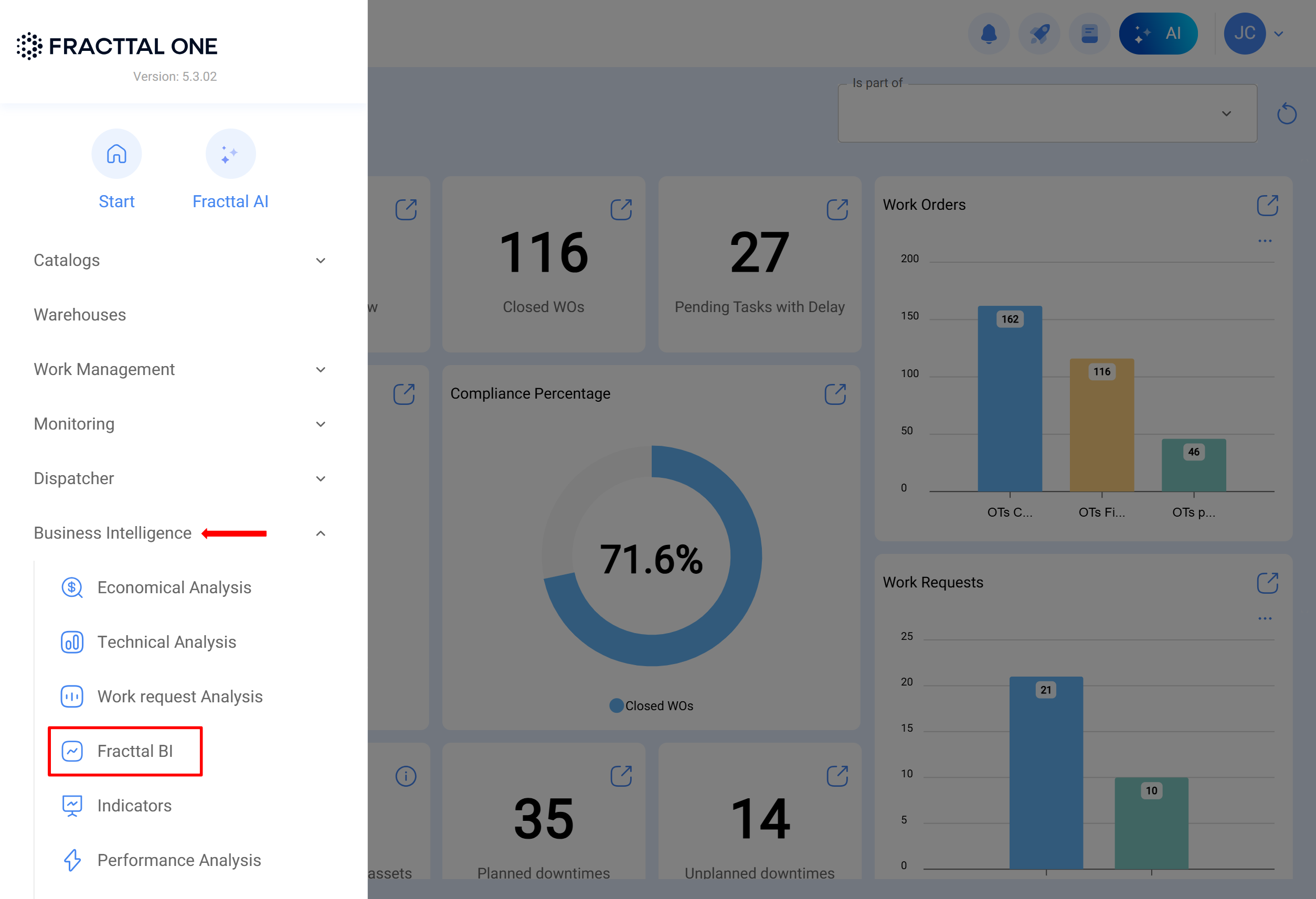

In the main menu of Fracttal One, go to Business Intelligence > Fracttal BI.

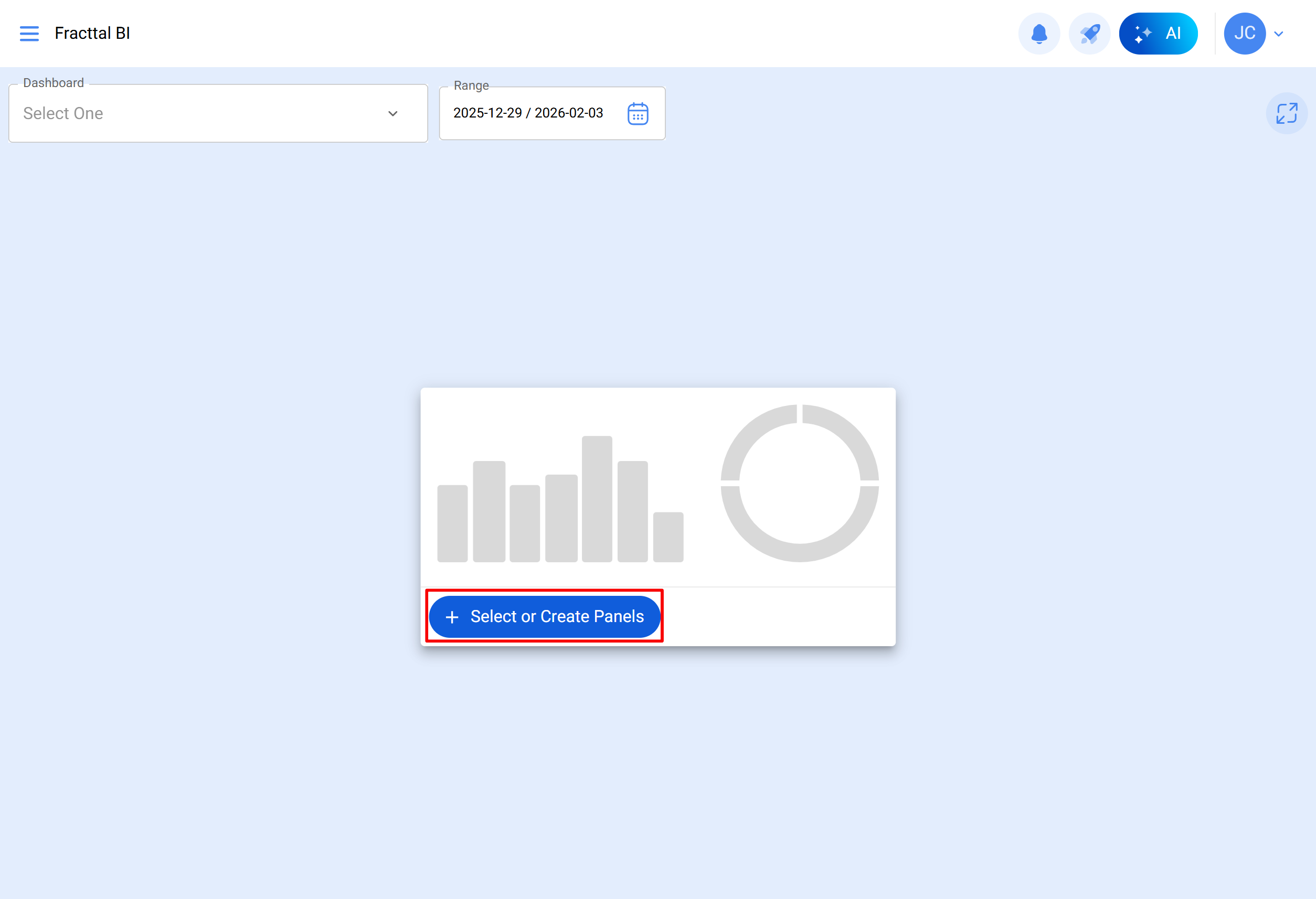

Within Fracttal BI, select the option to create a new chart.

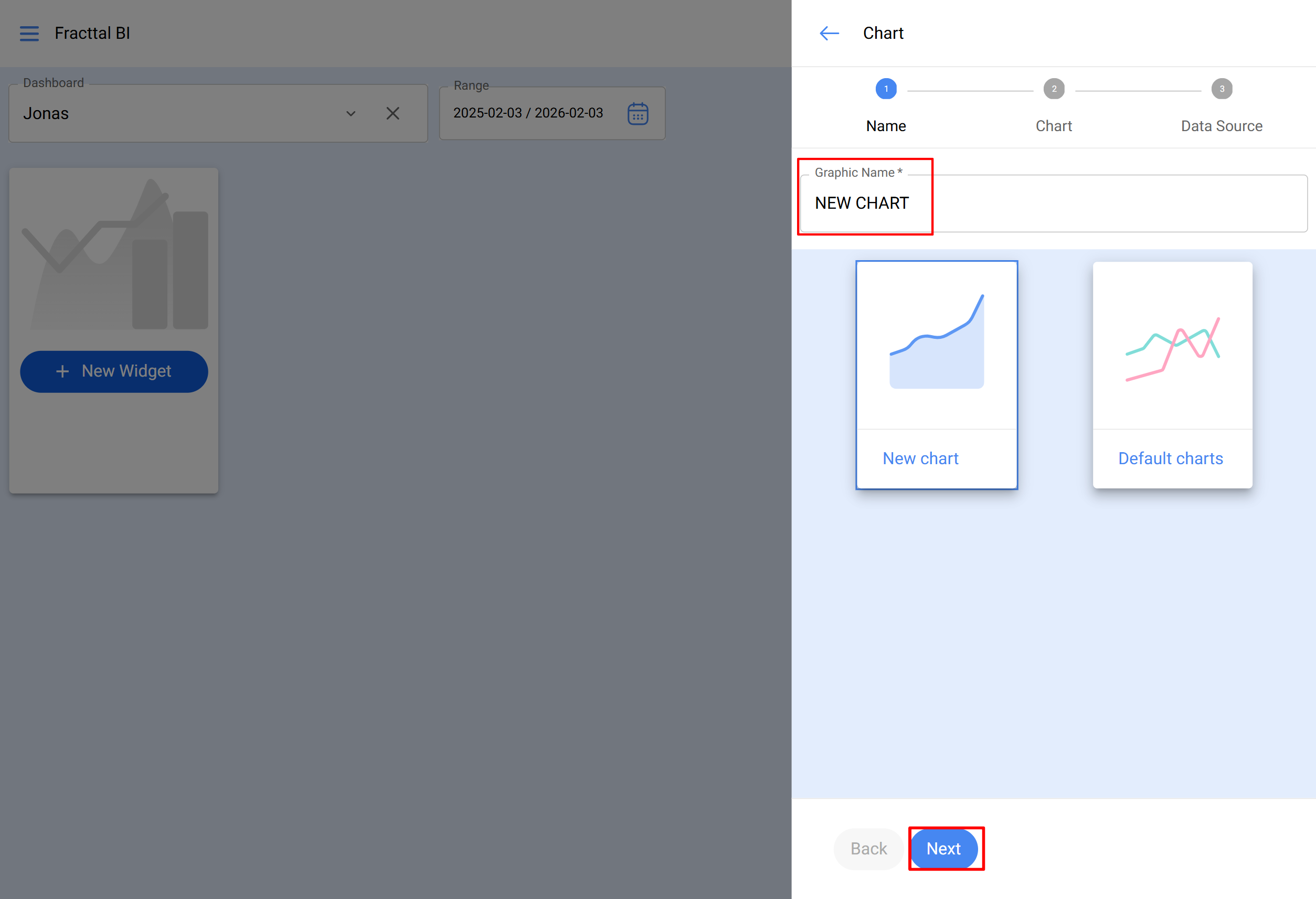

Enter a name that describes this chart.

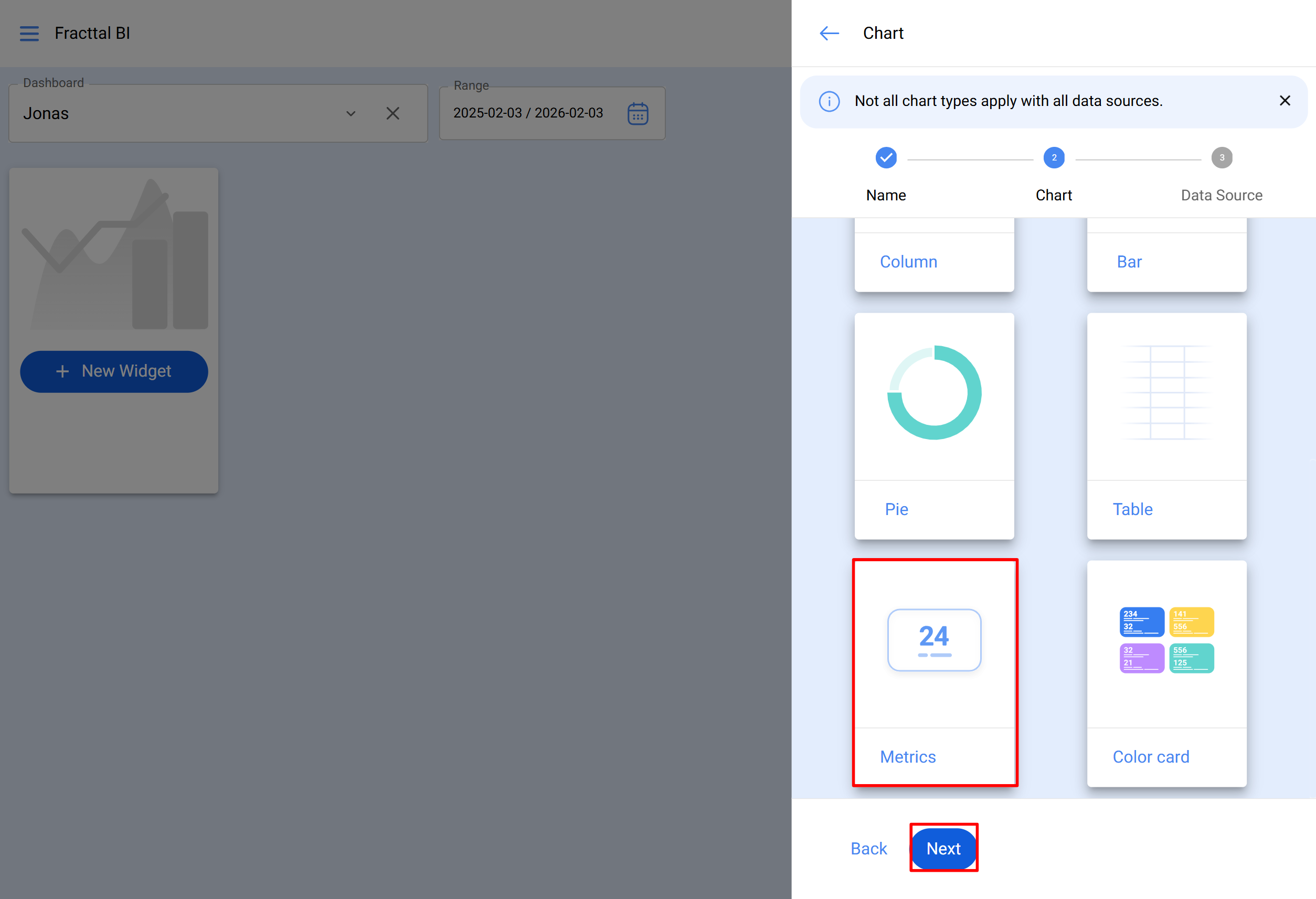

Next, choose the Metrics chart type.

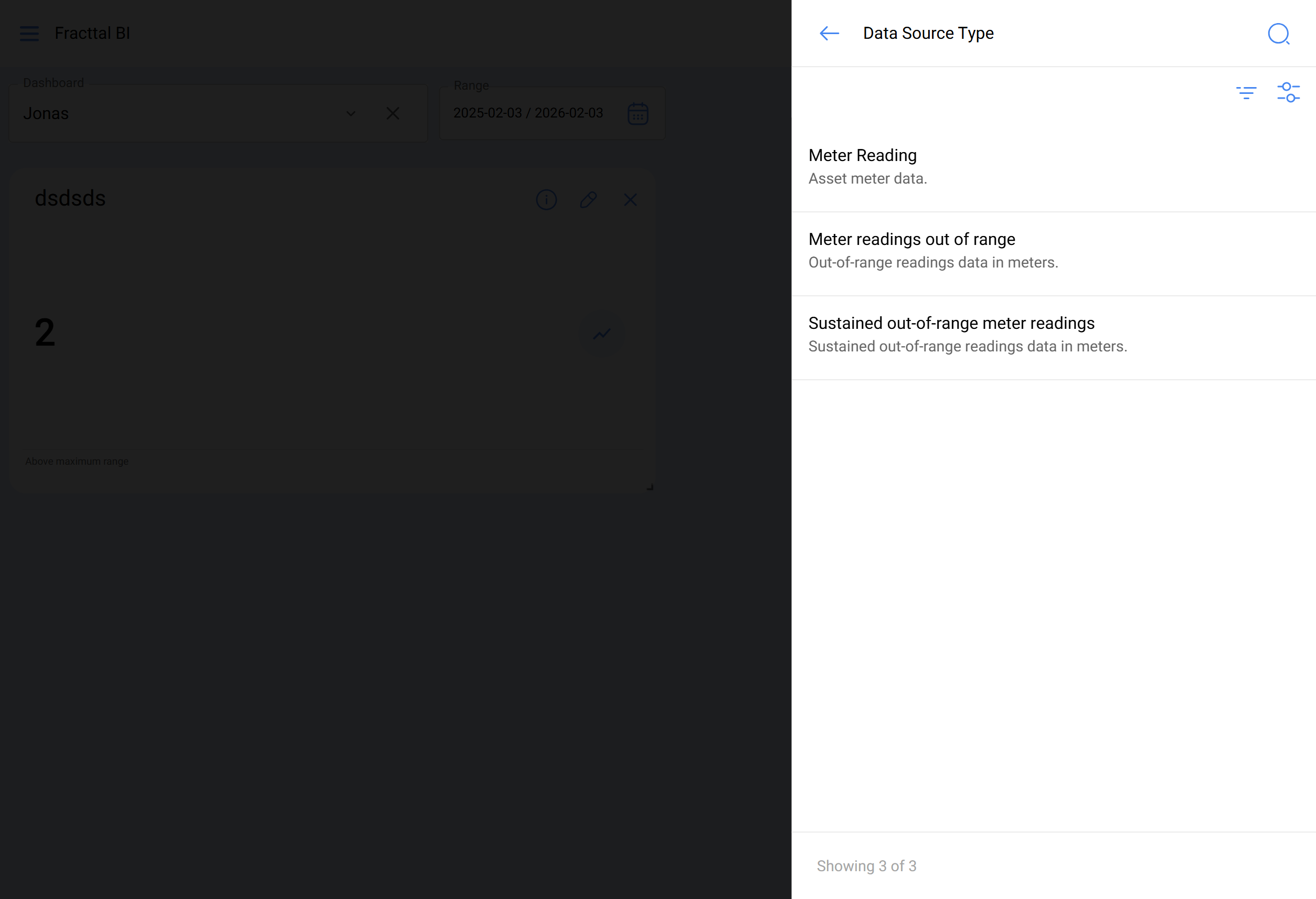

Add data source: Among the available series options for the metric are:
Meter reading: general data from the asset meter.
Out-of-range meter readings: data of readings that are outside the established limits.
Sustained out-of-range meter readings (Biconditional): data of readings that remain outside the limits for a continuous period.
For the use of the biconditional, a non-accumulative meter must be combined with an On/Off meter, allowing simultaneous comparison of two different behaviors within the same metric.
Continuing with the configuration of the Data Source, first select the asset and the related meter to be analyzed. Then, define which information you want to query according to the following options:
Above the maximum limit
Below the minimum limit
Total out of range
Finally, specify the values set for the minimum, maximum, or both limits, depending on the previous selection. These values determine the current ranges used to classify the meter readings.

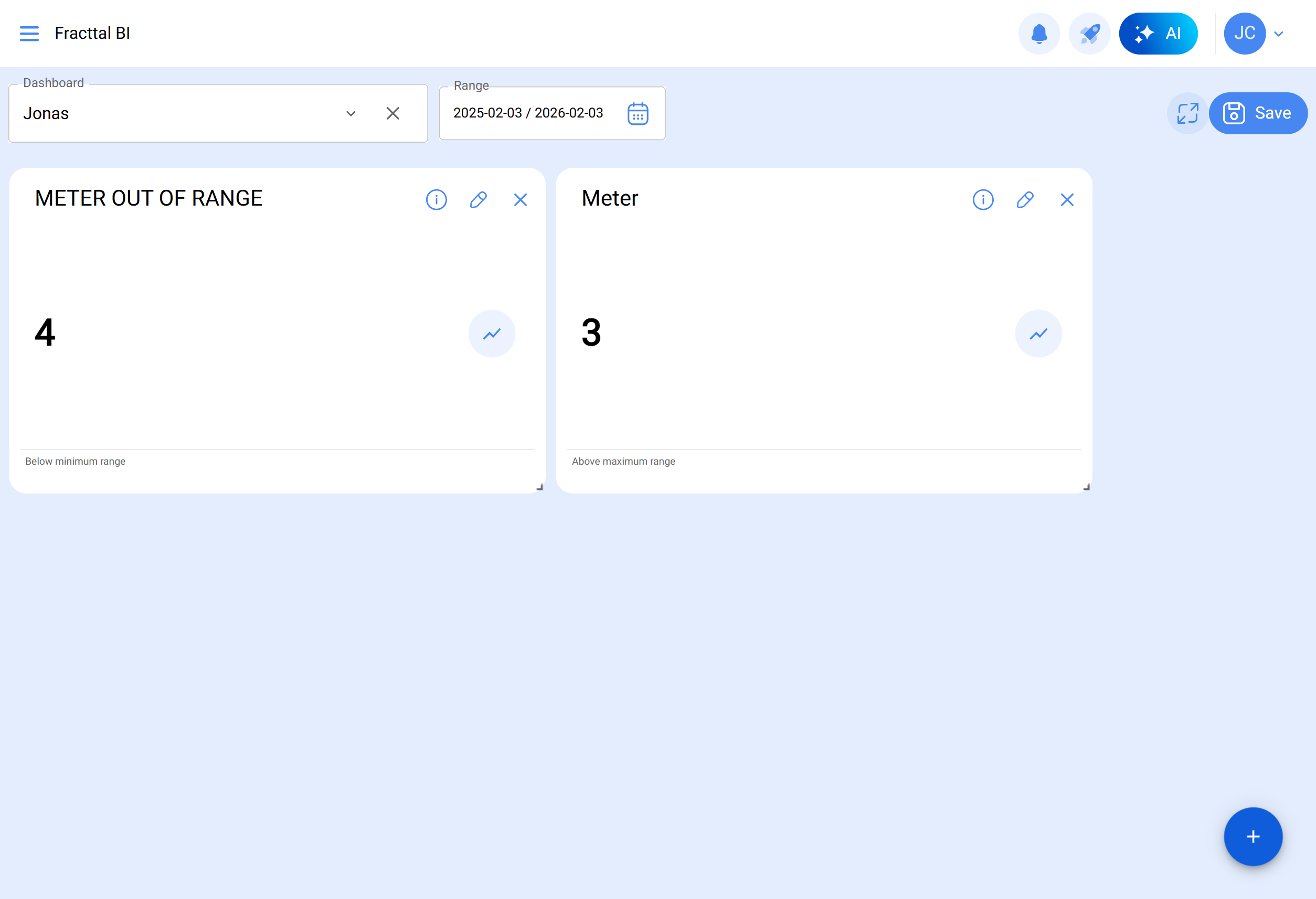

Upon completing the configuration of this metric in the Meter Dashboard, users have a resource that allows them to observe and analyze precisely how the measurements behave relative to the established limits.
